Components and Components Location: Components

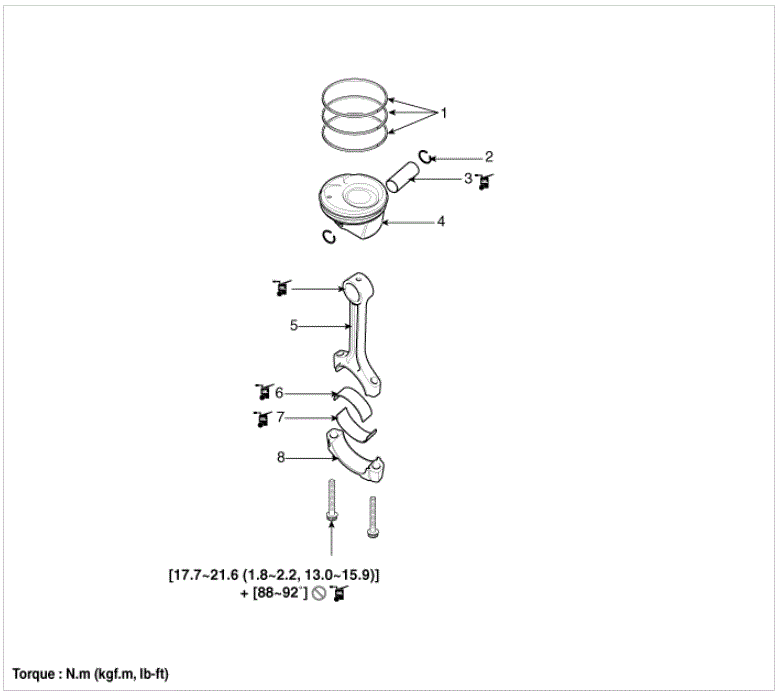

Fig 1: Piston And Connecting Rod Replacement Components With Torque Specifications
G00554212Courtesy of HYUNDAI MOTOR AMERICA
1. Piston ring 5. Connecting rod
2. Snap ring 6. Connecting rod upper bearing
3. Piston pin 7. Connecting rod lower bearing
4. Piston 8. Connecting rod bearing cap
