Components and Components Location: Components

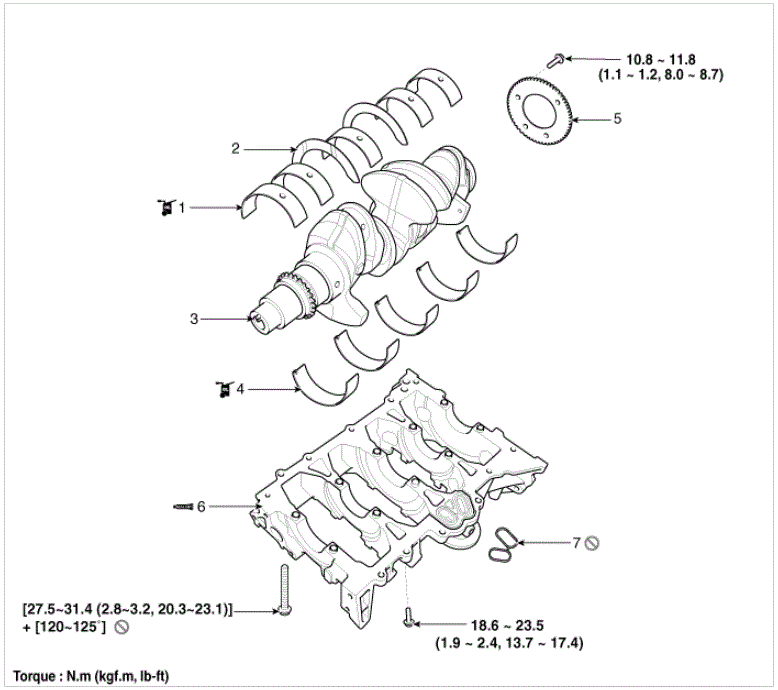

Fig 1: Crankshaft Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Crankshaft upper bearing	5. CKPS (Crankshaft position sensor) wheel
2. Crankshaft thrust bearing	6. Lower crankcase
3. Crankshaft	7. Gasket
4. Crankshaft lower bearing
