Components and Components Location: Components

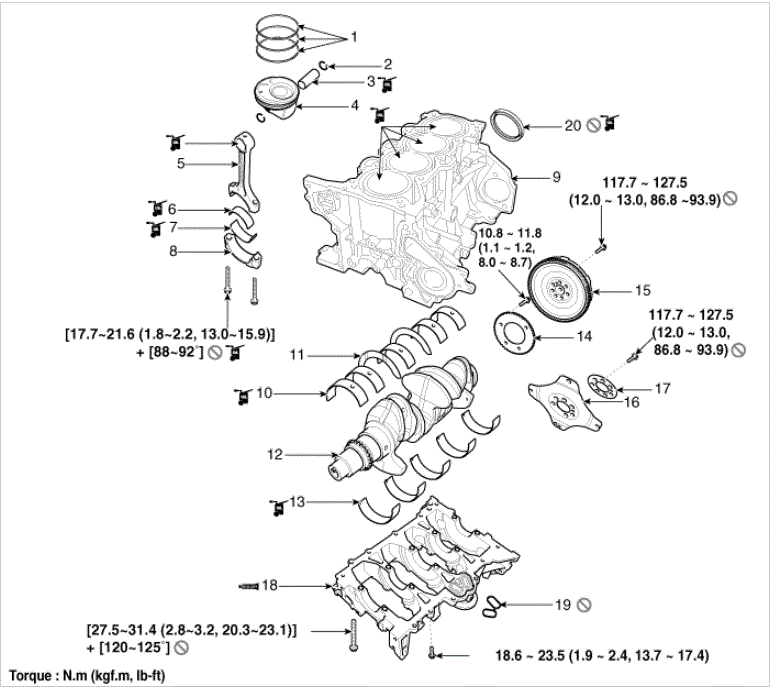

Fig 1: Cylinder Block Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Piston ring	8. Connecting rod bearing cap	15. Flywheel
2. Snap ring	9. Cylinder block	16. Drive plate
3. Piston pin	10. Crankshaft upper bearing	17. Adapter plate
4. Piston	11. Crankshaft thrust bearing	18. Lower crankcase
5. Connecting rod	12. Crankshaft	19. Gasket
6. Connecting rod upper bearing	13. Crankshaft lower bearing	20. Rear oil seal
7. Connecting rod lower bearing	14. CKPS (Crankshaft position sensor) wheel
