Repair procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

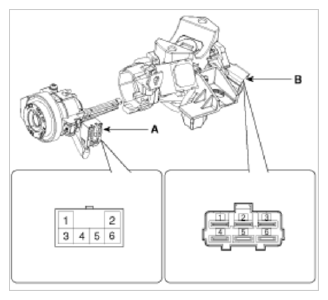

    Fig 1: Identifying Ignition And Key Warning Switch Connector
    G09887851Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

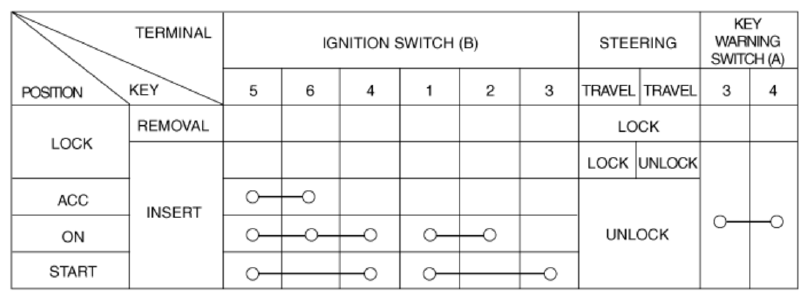

    Fig 2: Ignition Switch Continuity Reference Chart
    G09887852Courtesy of HYUNDAI MOTOR AMERICA
