Home >> Hyundai >> 2014 >> Elantra Coupe Standard Trans >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle Control System >> Components and Components Location >> Components

Components and Components Location: Components

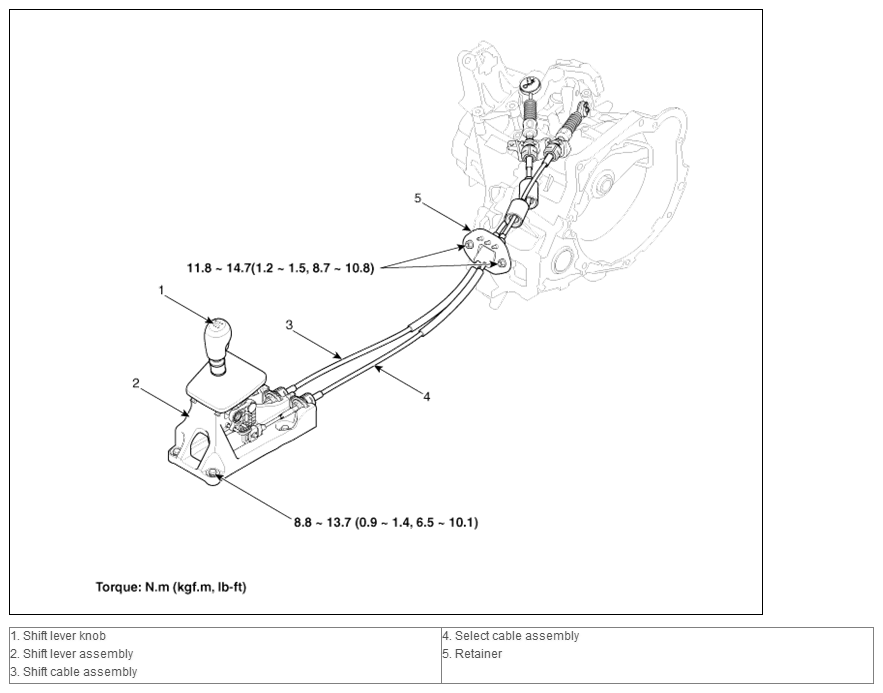

Fig 1: Manual Transaxle Control System Component Locations With Torque Specification

G10253080

Courtesy of HYUNDAI MOTOR AMERICA
