Driver Power Window Switch

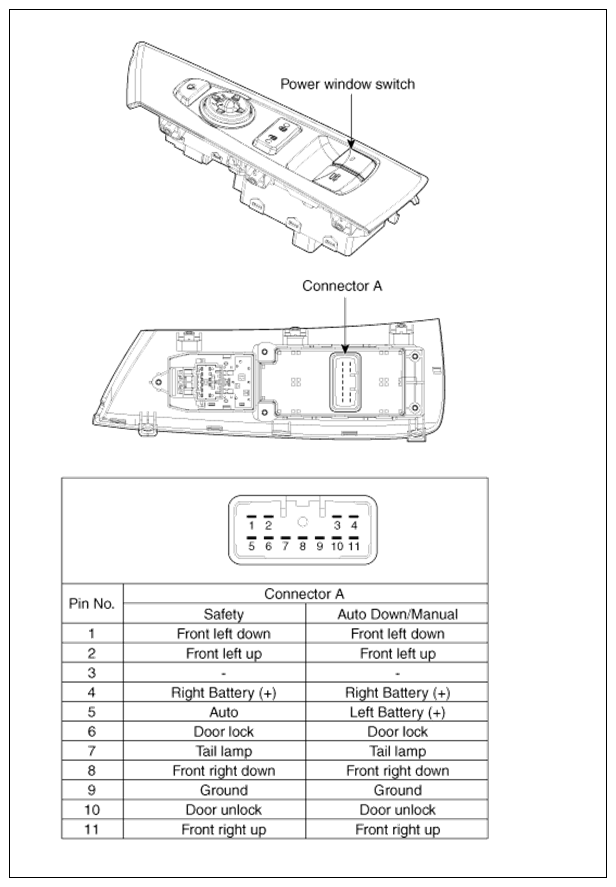

Fig 1: Driver Power Window Switch Schematic Diagram And Connector Terminal Identification
G10254800Courtesy of HYUNDAI MOTOR AMERICA

Passenger power window switch

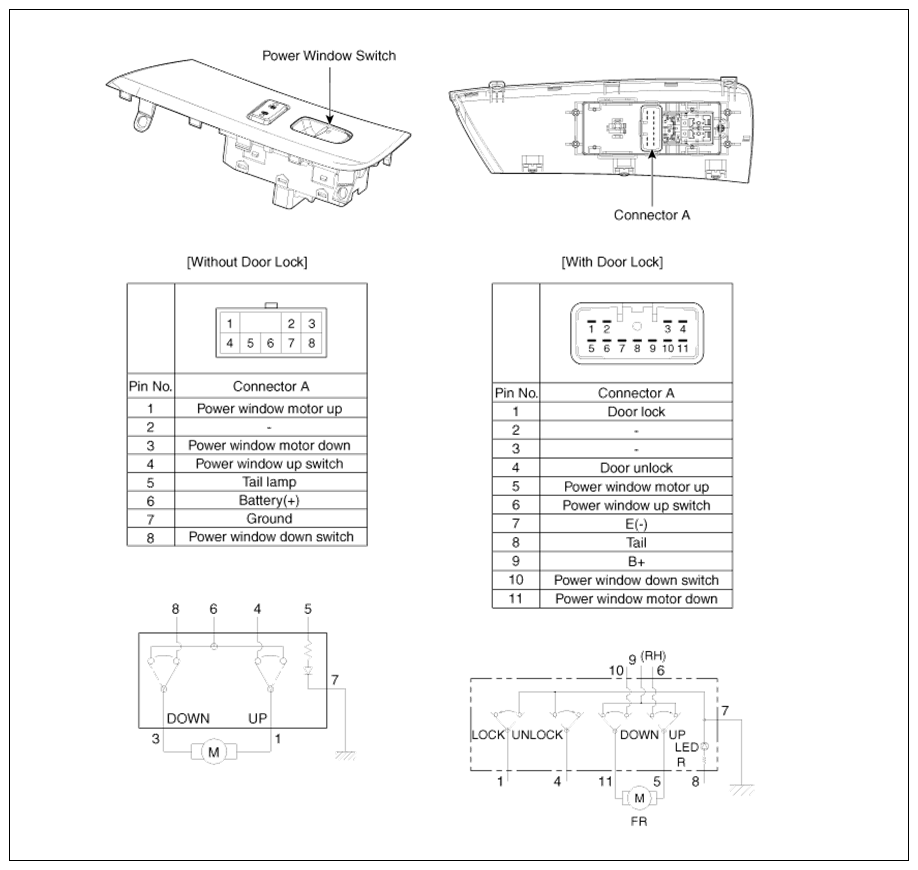

Fig 2: Passenger Power Window Switch Schematic Diagram And Connector Terminal Identification
G10254801Courtesy of HYUNDAI MOTOR AMERICA
