Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFO".

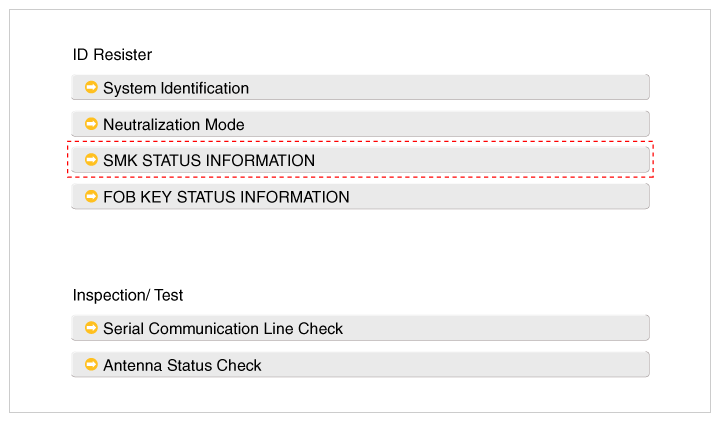

    Fig 1: Display - Selecting SMK Status Information Screen
    G10254557Courtesy of HYUNDAI MOTOR AMERICA

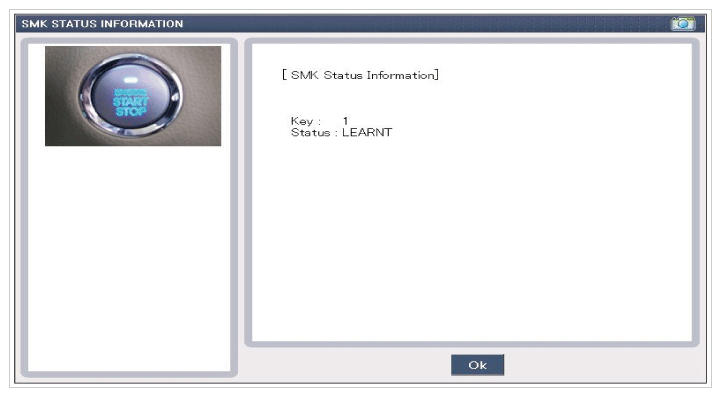

    Fig 2: Display - SMK Status Information Screen
    G10254558Courtesy of HYUNDAI MOTOR AMERICA
