Front Engine Hanger

  1. Remove the front engine hanger (A)

    Tightening torque:

    44.1 - 53.6 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

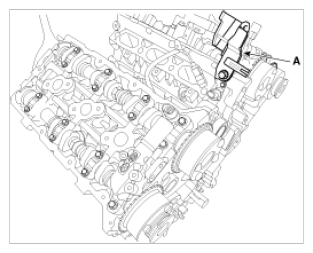

    Fig 1: Identifying Front Engine Hanger
    G08809122Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
