Components And Components Location: Components

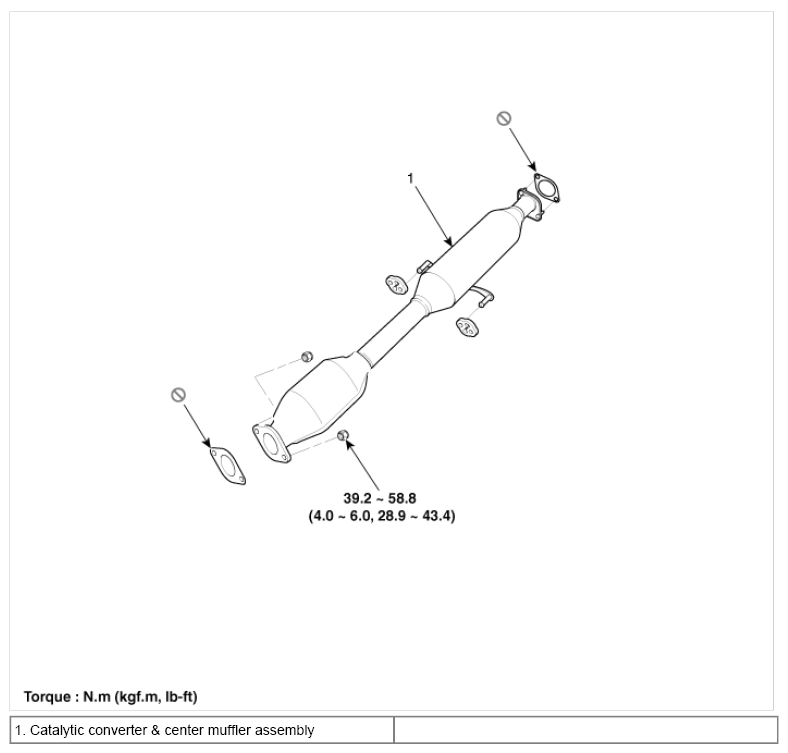

Fig 1: Catalytic Converter And Center Muffler Assembly With Torque Specifications

G08809418

Courtesy of HYUNDAI MOTOR AMERICA
