Power seat control switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the door trim (A) after loosening mounting screws.

    (Refer to "FRONT DOOR TRIM ")

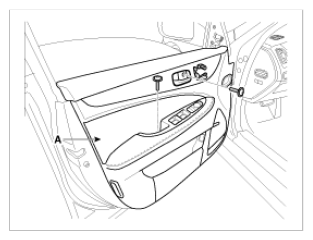

    Fig 1: Identifying Door Trim
    G08814304Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the memory power seat control switch (A) after loosening connector and screws (3EA) from the door trim.
    Fig 2: Identifying Memory Power Seat Control Switch And Screws
    G08814305Courtesy of HYUNDAI MOTOR AMERICA

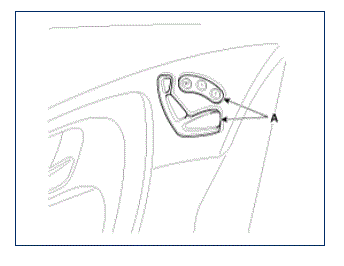

    Fig 3: Identifying Memory Power Seat Control Switch
    G08814306Courtesy of HYUNDAI MOTOR AMERICA
