Trunk Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk transverse trim.

    (Refer to "TRUNK TRIM ")

  3. Disconnect the trunk antenna connector (A) and remove the trunk antenna (B) after loosening screws (2EA).

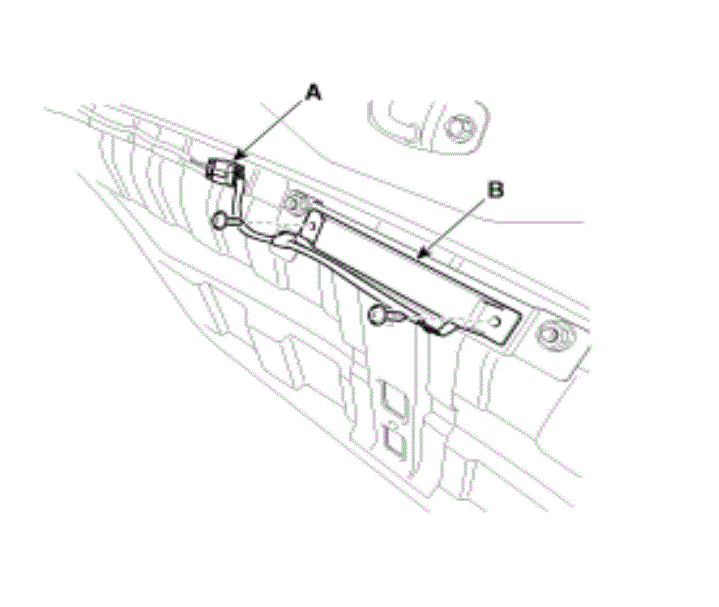

    Fig 1: Identifying Trunk Antenna And Connector
    G08814192Courtesy of HYUNDAI MOTOR AMERICA
