Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON".
  3. Select "Current Data" mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
  4. Change shift lever to "Sports Mode".

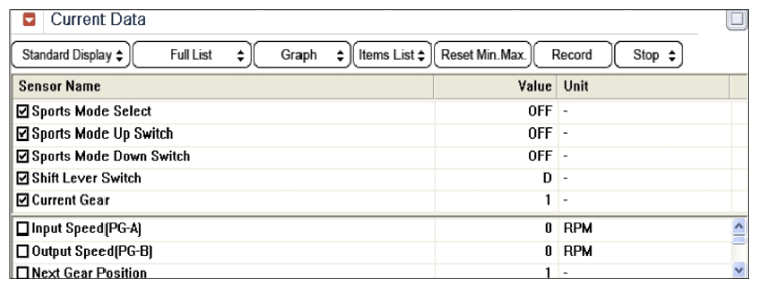

    Fig 1: Display - Sport Mode Switch Current Data ("D" Range)
    G08818406Courtesy of HYUNDAI MOTOR AMERICA

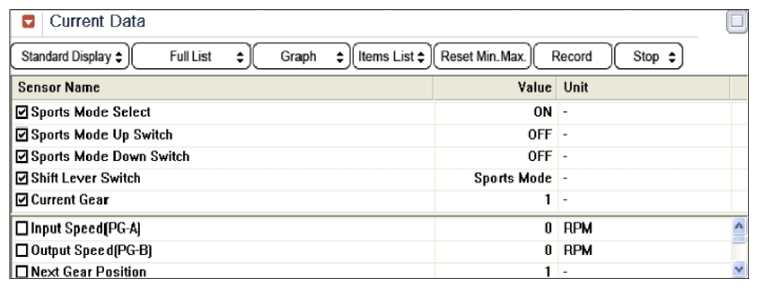

    Fig 2: Display - Sport Mode Switch Current Data ("Sports Mode ON")
    G08818407Courtesy of HYUNDAI MOTOR AMERICA
    Fig 3: Display - Sport Mode Switch Current Data ("Sports Mode Up Switch ON")
    G08818408Courtesy of HYUNDAI MOTOR AMERICA

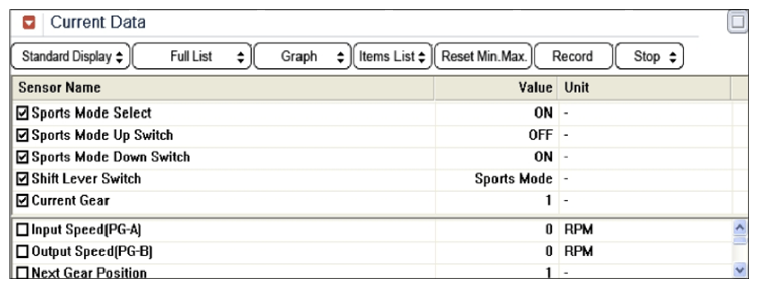

    Fig 4: Display - Sport Mode Switch Current Data ("Sports Mode Down Switch ON")
    G08818409Courtesy of HYUNDAI MOTOR AMERICA
  5. Is Sports Mode Switch working within specification?

    YES

    • Fault is intermittent caused by poor contact between PCM/TCM and Sensor and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
