Home >> Hyundai >> 2014 >> Azera Base >> Repair and Diagnosis >> Suspension >> Wheels & Tire System >> Tire Pressure Monitoring System >> TPMS Sensor >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Remove the tire. (Refer to "TIRE ")
  2. Remove the valve nut.

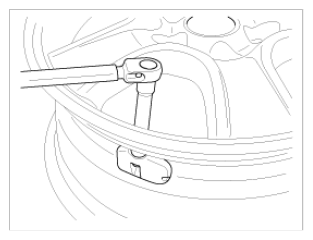

    Fig 1: Removing Valve Nut Using Tool
    G08810160Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: The valve nut should not be re-used.
