Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower cover (A) and then disconnect the connector (B).

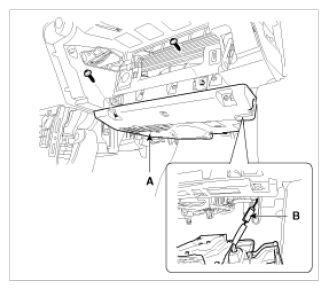

    Fig 1: Identifying Crash Pad Lower Cover And Connector
    G08814830Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the power mosfet connector (A) and then remove the power mosfet (B) after loosening the mounting screws.

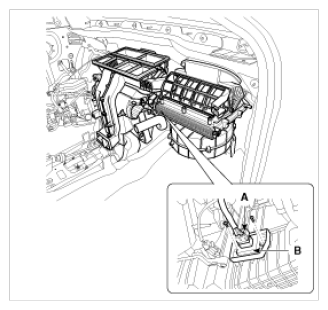

    Fig 2: Identifying Power Mosfet And Connector
    G08814831Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse order of removal.
