Repair Procedures: Inspection

  1. Ignition "OFF".
  2. Disconnect evaporator temperature sensor.
  3. Using the multi-tester, Measure resistance between terminal "1" and "2" of evaporator temperature sensor.

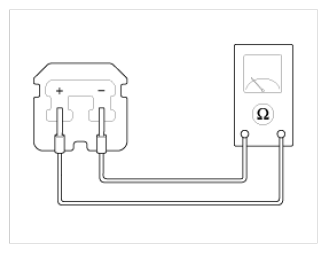

    Fig 1: Measuring Resistance Between Terminal 1 And 2 Of Evaporator Temperature Sensor Using Multi-Tester
    G08814765Courtesy of HYUNDAI MOTOR AMERICA
    SPECIFICATION

    Evaporator core temperature [°C (°F)] Resistance [KΩ] Voltage [V]
    -20(-4) 70.04 3.50
    -10(14) 43.35 2.96
    0(32) 27.62 2.40
    10(50) 18.07 1.88
    20(68) 12.11 1.44
    30(86) 8.30 1.08
    40(104) 5.81 0.81
    50(122) 4.15 0.61
