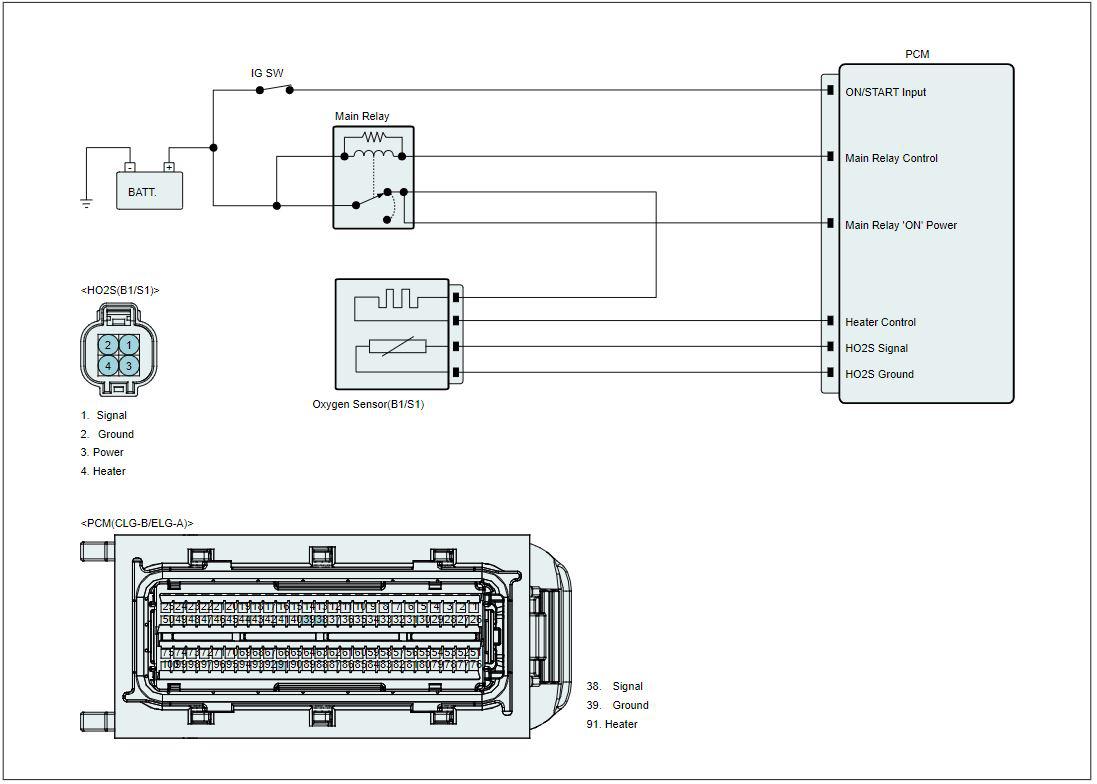

Home >> Hyundai >> 2014 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (3 Of 3) >> DTC P2196: O2 Sensor Signal Stuck Rich (Bank 1 Sensor 1) >> General Information >> Diagnostic Circuit Diagram
