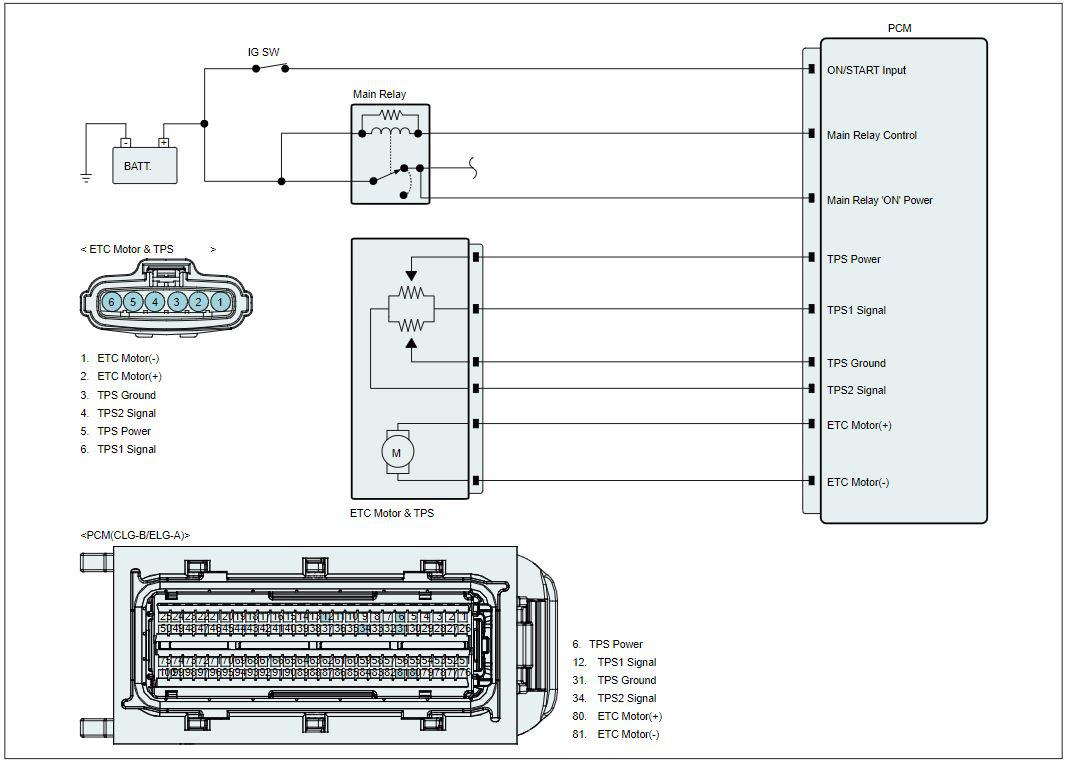

Home >> Hyundai >> 2014 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 3) >> DTC P0123: Throttle Position Sensor 1 Signal Circuit High Input >> General Information >> Diagnostic Circuit Diagram
