Home >> Hyundai >> 2014 >> Azera Base >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Oil Level Gauge & Pipe >> Components and Components Location >> Components

Components and Components Location: Components

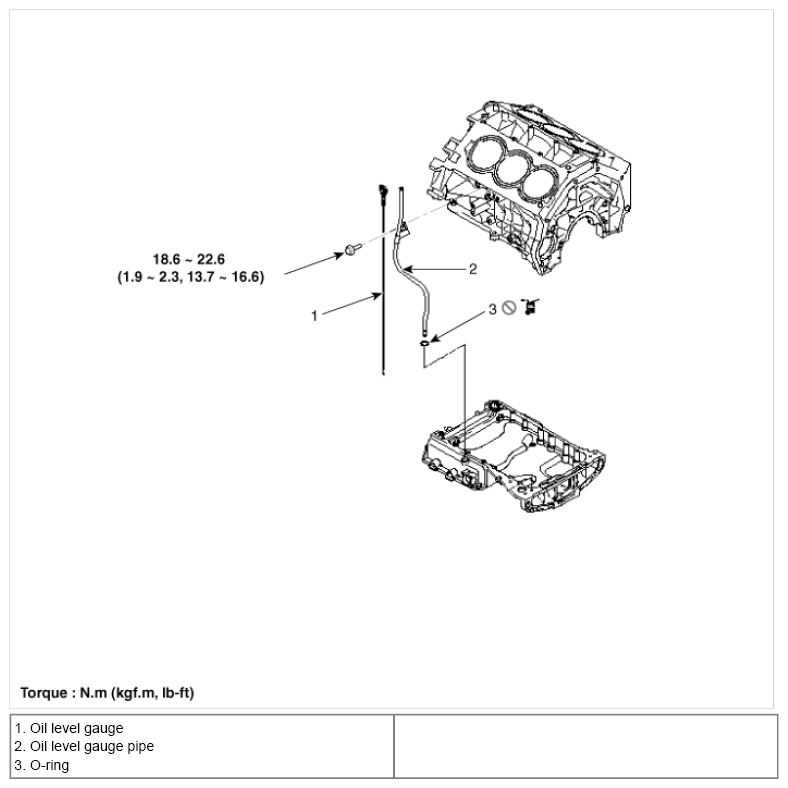

Fig 1: Oil Level Gauge, Pipe And O-Ring With Torque Specifications

G08809397

Courtesy of HYUNDAI MOTOR AMERICA
