SRS Control Module Connector End View (M10)

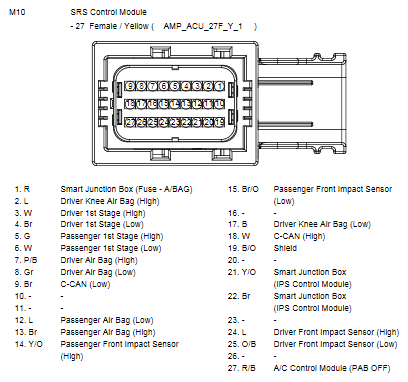

Fig 1: SRS Control Module Connector End View (M10)

G10775746

Courtesy of HYUNDAI MOTOR AMERICA
