Home >> Hyundai >> 2014 >> Azera Base >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> Dynamic Damper >> Components and Components Location >> Components

Components and Components Location: Components

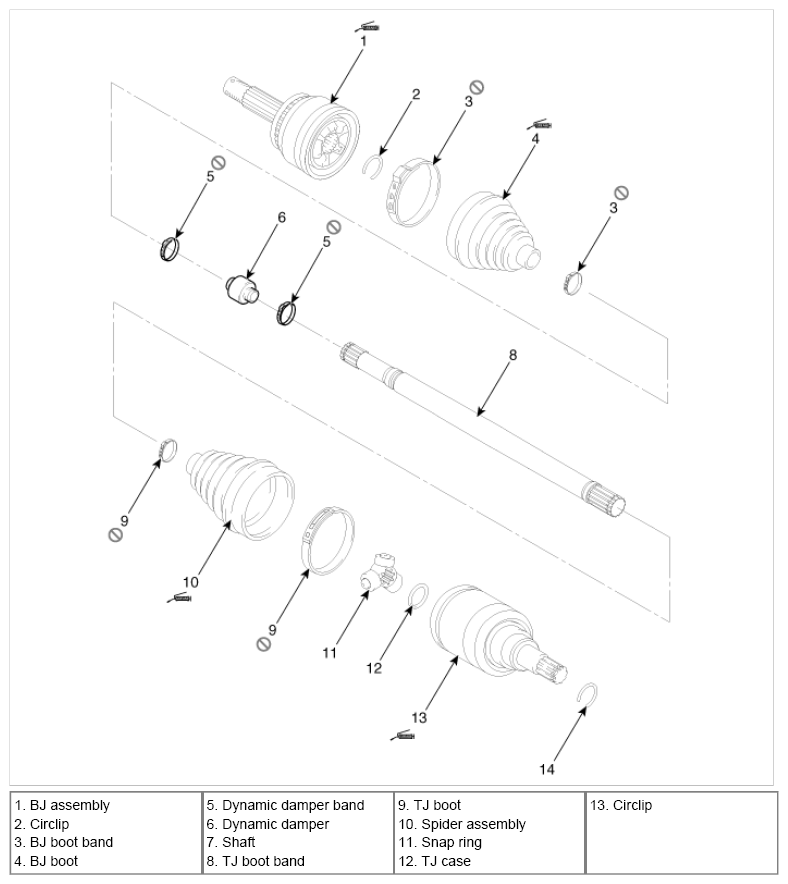

Fig 1: Identifying Dynamic Damper Components
G08810042Courtesy of HYUNDAI MOTOR AMERICA
