Repair procedures: Replacement: Installation

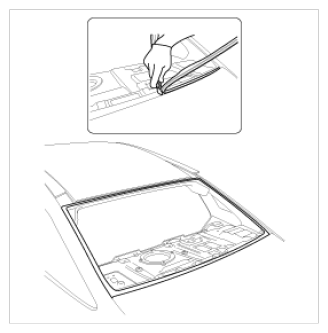

With a knife, scrape the old adhesive smooth to a thickness of about 2mm (0.08 in.) on the bonding surface around the entire rear window glass opening flange:
1. Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
2. Remove the rubber dam and fasteners from the body.
3. Mask off surrounding surfaces before painting.

  Fig 1: Masking Off Surrounding Surfaces Before Painting
  Courtesy of HYUNDAI MOTOR AMERICA
Clean the body bonding surface with a sponge dampened in alcohol. After cleaning, keep oil, grease and water from getting on the clean surface.

Fig 2: Cleaning Body Bonding Surface
Courtesy of HYUNDAI MOTOR AMERICA
With a sponge, apply a light coat of body primer to the original adhesive remaining around the windshield opening flange. Let the body primer dry for at least 10 minutes.
1. Do not apply glass primer to the body and be careful not to mix up glass and body primer sponges.
2. Never touch the primed surfaces with your hands.
3. Mask off the dashboard before painting the flange.

  Fig 3: Identifying Windshield
  Courtesy of HYUNDAI MOTOR AMERICA

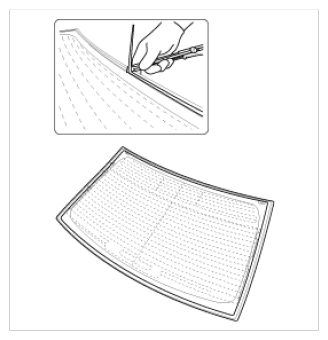

Apply a light coat of glass primer to the outside of the fasteners.
1. Never touch the primed surface with your hand. If you do, the adhesive may not bond to the glass properly, causing a leak after the tailgate glass is installed.
2. Do not apply body primer to the glass.
3. Keep water, dust, and abrasive materials away from the primer.

  Fig 4: Identifying Windshield Glass
  Courtesy of HYUNDAI MOTOR AMERICA
Paste the rear window glass molding (A) and then install the rear window glass (B).

Fig 5: Identifying Rear Window Glass And Molding
Courtesy of HYUNDAI MOTOR AMERICA

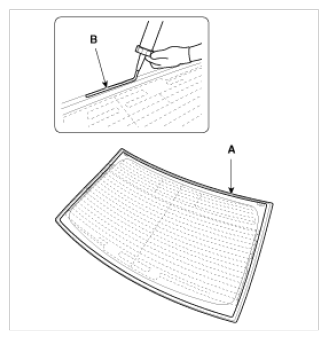

Pack adhesive into the cartridge without air pockets to ensure continuous delivery. Put the cartridge in a caulking gun and run a bead of sealant (B) around the edge of the rear window glass (A) as shown in the illustration. Apply the adhesive within 30 minutes after applying the glass primer. Make a slightly thicker bead at each corner.
Sealant Bead width

Height: 12 mm (0.4724 in.)

Width: 8 mm (0.3150 in.)

Fig 6: Running Bead Of Sealant Around Edge Of Rear Window Glass
Courtesy of HYUNDAI MOTOR AMERICA

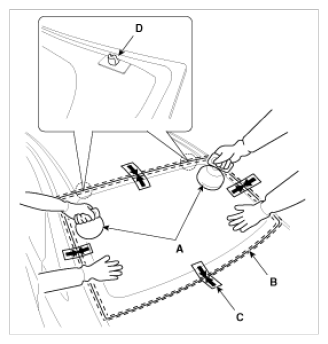

Use suction cups (A) to hold the rear window glass (B) over the opening, align it with the alignment marks (C) made in step 15, and set it down on the adhesive. Lightly push on the windshield until its edges are fully seated on the adhesive all the way around. Do not open or close the doors until the adhesive is dry.
NOTE:
- When installing the rear window glass (B), set the rear glass service hole (D) to the frame exactly.
Fig 7: Holding Rear Window Glass Using Suction Cups
Courtesy of HYUNDAI MOTOR AMERICA
Let the adhesive dry for at least 3-4 hour, then spray water over the glass and check for leaks.
CAUTION:
- Do not spray to adhesive area directly. Spray water over the glass and then spill water around the glass.
Areas may leak. Let the glass dry, then seal with adhesive.
CAUTION:
- Let the vehicle stand for at least four hours after glass installation. If the vehicle has to be used within the first eight, it must be driven slowly.
- Keep the glass dry for the first hour after installation.
- Please have the driver use caution and not drive vehicle along an uneven dirt road or drive violently.
Install the rear window glass defogger connector.
Install the rear package tray trim.
Install the roof side molding.
