Repair Procedures: Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

Remove the rear seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

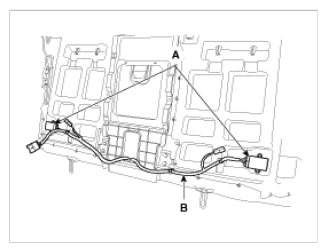

Disconnect the connectors (A), and mounting wiring clips (B).

Fig 1: Identifying Connectors And Mounting Wiring Clips
Courtesy of HYUNDAI MOTOR AMERICA

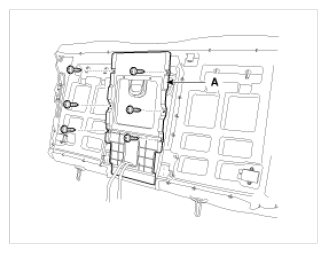

After loosening the mounting screws, then remove the rear back armrest board (A).

Fig 2: Identifying Rear Back Armrest Board
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts, then remove the rear back armrest (A).

Fig 3: Identifying Rear Back Armrest
Courtesy of HYUNDAI MOTOR AMERICA

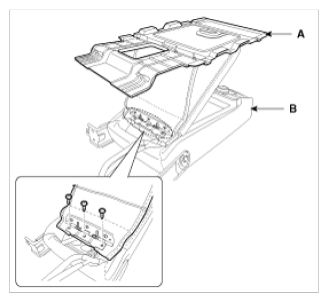

Remove the rear back armrest board (A) after loosening the screws on the rear back armrest (B).

Fig 4: Identifying Rear Back Armrest And Board
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are plugged in properly.
