Repair Procedures: Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")
Remove the front seat shield outer cover.
(Refer to "FRONT SEAT SHIELD OUTER COVER ")
Push the lock pin (B), remove the front seat headrest (A).

Fig 1: Identifying Front Seat Headrest And Lock Pin
Courtesy of HYUNDAI MOTOR AMERICA

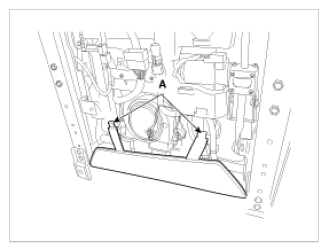

Remove the protector (A).

Fig 2: Identifying Protector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the front seat heater connector (A).

Fig 3: Identifying Front Seat Heater Connector
Courtesy of HYUNDAI MOTOR AMERICA
Push the clips (B) from the front seat back board (A).
CAUTION:
- Push the middle area of clip using the flat head screwdriver.
- Be careful not to damage the clip.
Fig 4: Identifying Seat Back Board And Clips
Courtesy of HYUNDAI MOTOR AMERICA

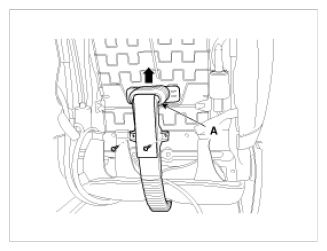

After loosening the mounting screws, then remove the air ventilation seat duct (A).

Fig 5: Removing Air Ventilation Seat Duct
Courtesy of HYUNDAI MOTOR AMERICA

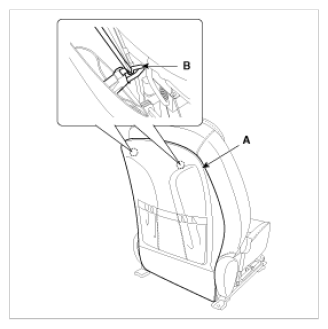

Push the protector (A) by the front seat back frame.

Fig 6: Identifying Front Seat Back Frame Protected
Courtesy of HYUNDAI MOTOR AMERICA

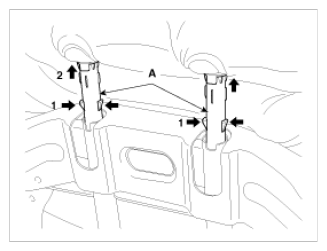

Pull out the headrest guides (A) while pinching the end of the guides and remove them.

Fig 7: Pulling Out Headrest Guides
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front seat back cover (A) from the front seat frame.

Fig 8: Identifying Front Seat Back Cover
Courtesy of HYUNDAI MOTOR AMERICA
After removing the velcro tape (A) on the front of seat back and remove the front seat back cover (B).

Fig 9: Identifying Front Seat Back Cover And Velcro Tape
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damaged clips.
