Repair Procedures: Removal

  1. Remove the bumper.

    (Refer to "FRONT BUMPER COVER ")

  2. Loosen the bolts and nuts and then remove the smart cruise control unit assembly (A) from the vehicle.

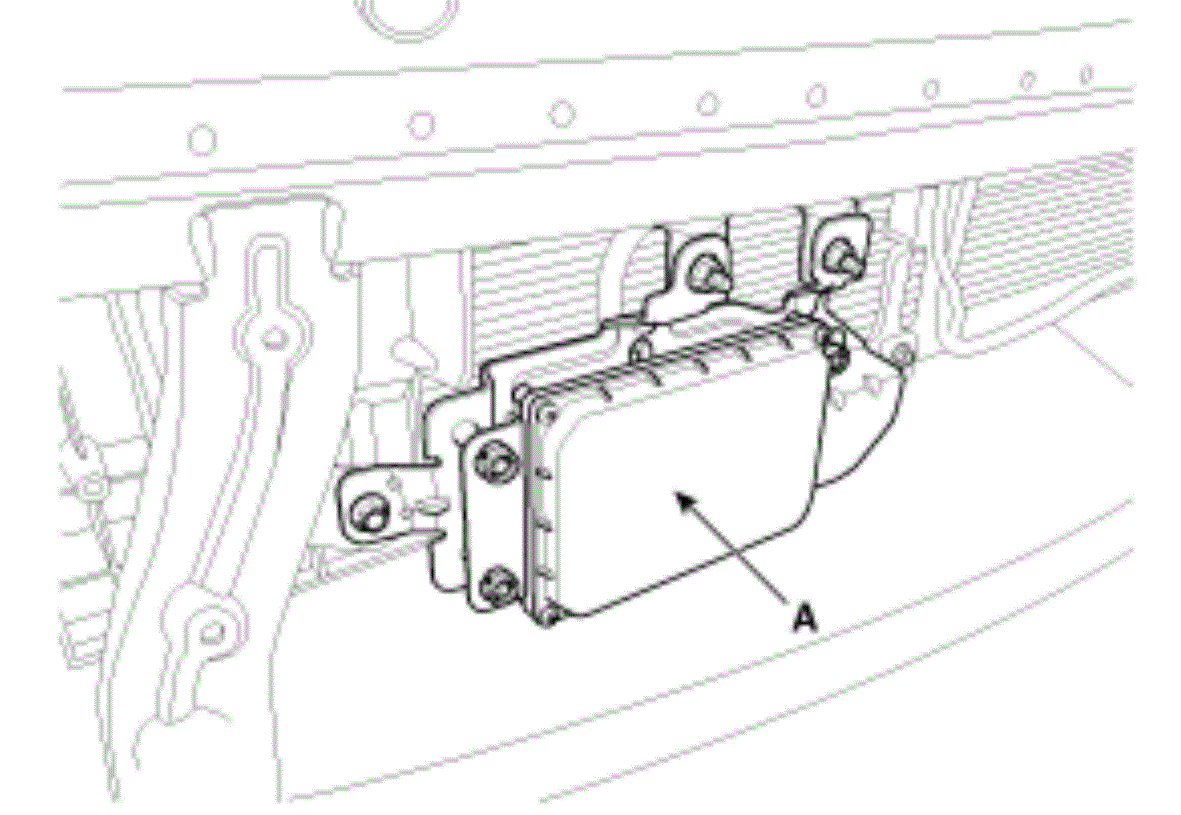

    Fig 1: Identifying Smart Cruise Control Unit Assembly
    G08809551Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the FEM joint connector (B) band cable and smart cruise control unit connector (A).

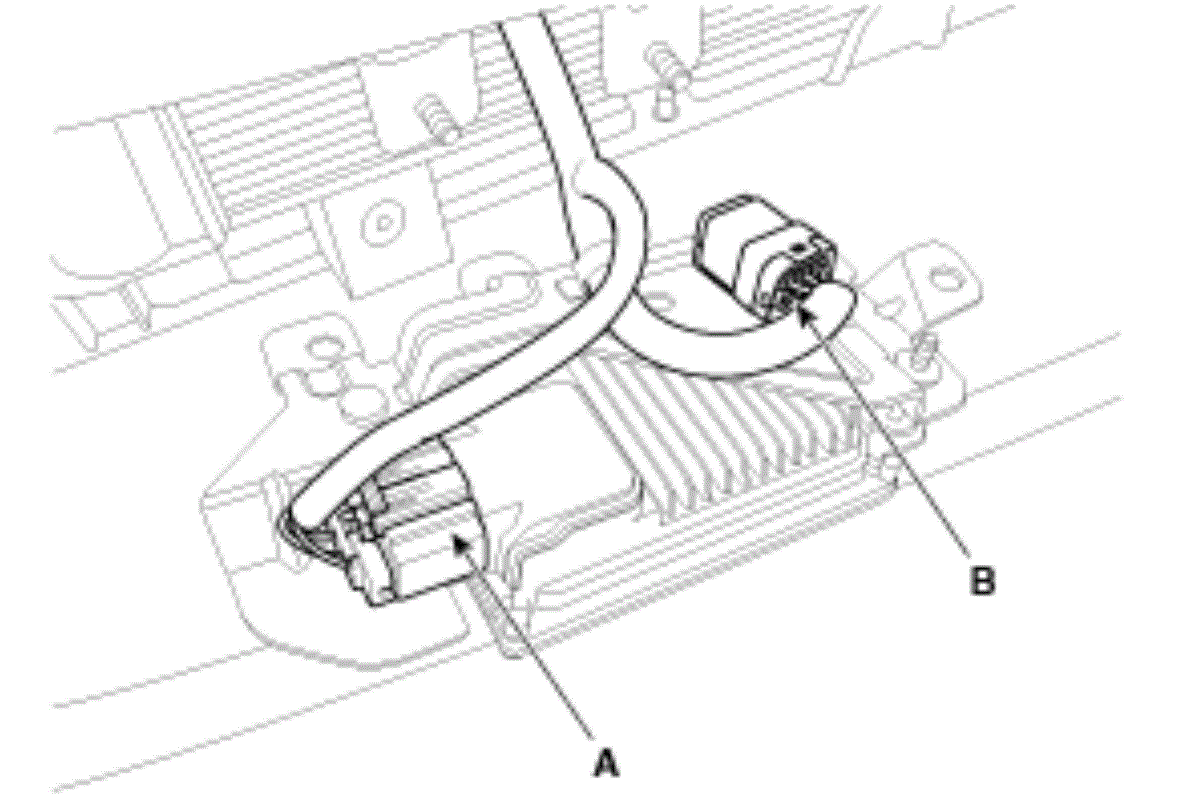

    Fig 2: Identifying FEM Joint Connector And Smart Cruise Control Unit Connector
    G08809552Courtesy of HYUNDAI MOTOR AMERICA
