Monitor Scantool Data
- Ignition "OFF", connect scantool.

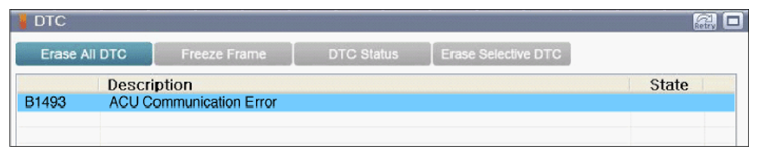

- Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
- Monitor diagnostic trouble code and present of trouble code.
- Using a scan tool, clear the DTC.
- Is DTC present problem?
YES
- Go to "W/HARNESS INSPECTION " procedure.
NO
- Intermittent failure, system is OK at this moment. Do not change Passenger side PODS-F sensor Mat & ECU.
- Fault is intermittent caused by poor contact in the connector/wiring harness or was repaired and Passenger side PODS-F sensor Mat & ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary, then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
