Variant Coding Procedure

On-Line type on GDS
1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.

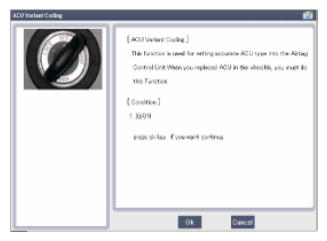

1. Initial ACU Variant Coding screen

  Fig 1: Display - On-Line Type On GDS (Initial ACU Variant Coding Screen)
  Courtesy of HYUNDAI MOTOR AMERICA

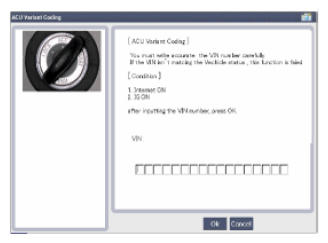

2. VIN Code entering screen

  Fig 2: Display - On-Line Type On GDS (VIN Code Entering Screen)
  Courtesy of HYUNDAI MOTOR AMERICA

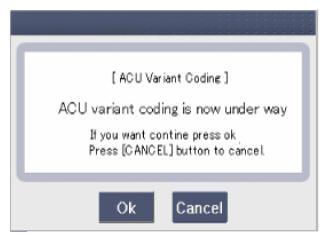

3. Variant coding's proceeding screen - 1

  Fig 3: Display - On-Line Type On GDS (Variant Coding's Proceeding Screen - 1)
  Courtesy of HYUNDAI MOTOR AMERICA

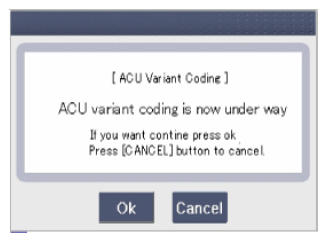

4. Variant coding's proceeding screen - 2

  Fig 4: Display - On-Line Type On GDS (Variant Coding's Proceeding Screen - 2)
  Courtesy of HYUNDAI MOTOR AMERICA

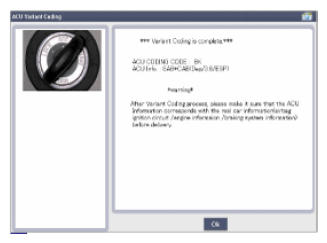

5. Variant coding is completed

  Fig 5: Display - On-Line Type On GDS (Variant Coding Completed Screen)
  Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
1. This screen is opened when you try the variant coding again on the SRSCM which has been performed variant coding.

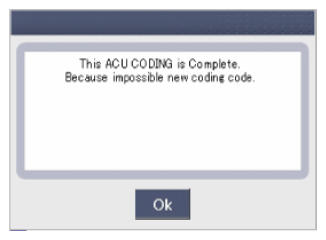

  Fig 6: Display - ACU Coding Completed Screen
  Courtesy of HYUNDAI MOTOR AMERICA

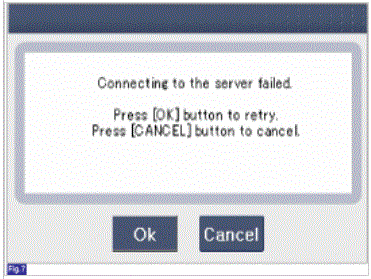

2. Screen of communication failure

  Fig 7: Display - Communication Failure Screen
  Courtesy of HYUNDAI MOTOR AMERICA
Off-line type on GDS (This can be used when not connecting to Internet)

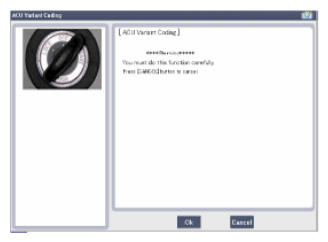

1. Initial ACU Variant Coding screen

  Fig 8: Display - Off-Line Type On GDS (Initial ACU Variant Coding Screen)
  Courtesy of HYUNDAI MOTOR AMERICA

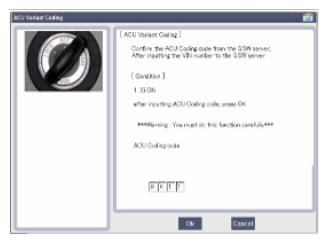

2. ACU Coding Code entering screen

  Fig 9: Display - Off-Line Type On GDS (ACU Coding Code Entering Screen)
  Courtesy of HYUNDAI MOTOR AMERICA
3. Screen of rechecking ACU Coding code's entering

  Fig 10: Display - Off-Line Type On GDS (Rechecking ACU Coding Code's Entering Screen)
  Courtesy of HYUNDAI MOTOR AMERICA
4. Variant coding's proceeding screen -1

  Fig 11: Display - Off-Line Type On GDS (Variant Coding's Proceeding Screen - 1)
  Courtesy of HYUNDAI MOTOR AMERICA
5. Variant coding's proceeding screen - 2

  Fig 12: Display - Off-Line Type On GDS (Variant Coding's Proceeding Screen - 2)
  Courtesy of HYUNDAI MOTOR AMERICA
6. Variant coding is completed

  Fig 13: Display - Off-Line Type On GDS (Variant Coding Completed Screen)
  Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
1. This screen is opened when you try the variant coding again on the SRSCM which has been performed variant coding.

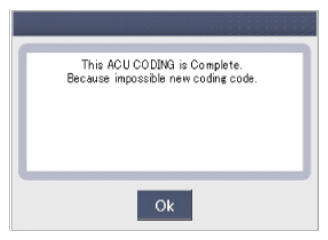

  Fig 14: Display - ACU Coding Completed Screen
  Courtesy of HYUNDAI MOTOR AMERICA
