Smart Key Control Module Connector End View (M13-B)

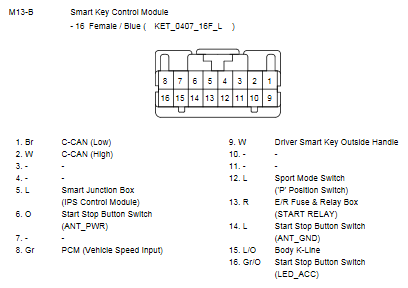

Fig 1: Smart Key Control Module Connector End View (M13-B)

G10775749

Courtesy of HYUNDAI MOTOR AMERICA
