Signal Waveform & Data

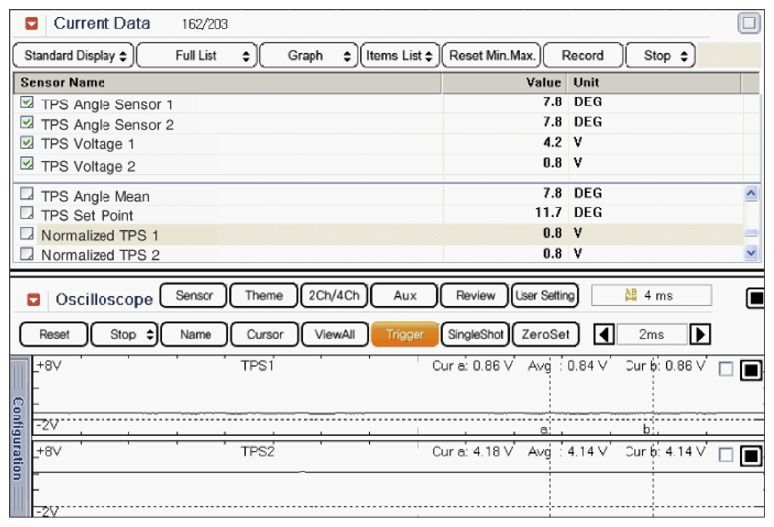

Fig 1: TPS1 & TPS2 Normal Data And Waveform (With Depressing Accelerator Pedal)
G08816996Courtesy of HYUNDAI MOTOR AMERICA

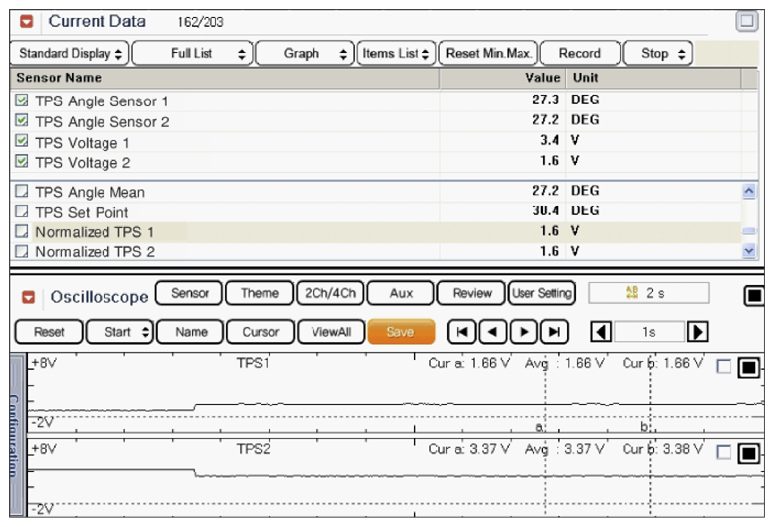

Fig 2: TPS1 & TPS2 Normal Data And Waveform (With Pressing Accelerator Pedal)
G08816997Courtesy of HYUNDAI MOTOR AMERICA

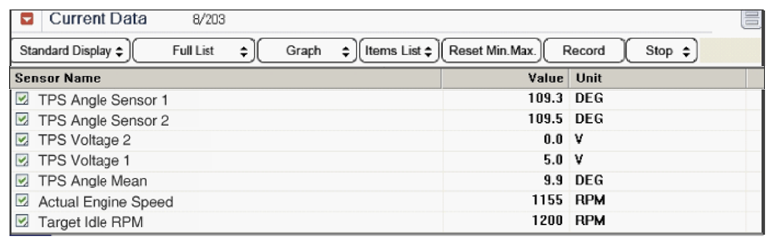

Fig 3: TPS1 & TPS2 Abnormal Data (With Connector Disconnected Condition)
G08816998Courtesy of HYUNDAI MOTOR AMERICA
