Circuit Diagram

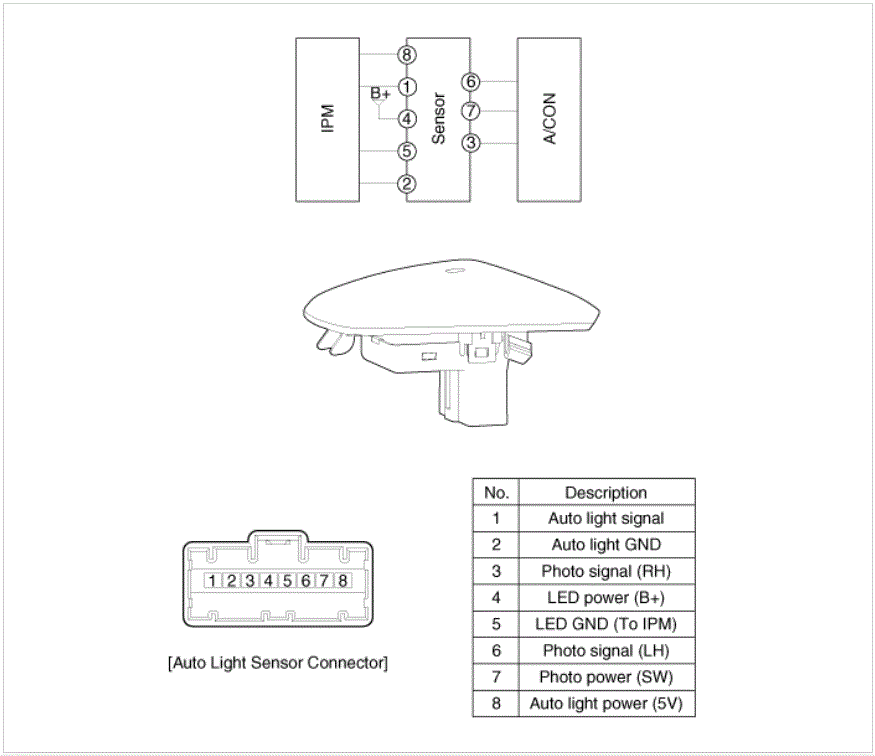

Fig 1: Auto Lighting Control System - Circuit Diagram

G08814610

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: For additional wiring information, refer to appropriate SYSTEM WIRING DIAGRAMS article .
