Repair procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

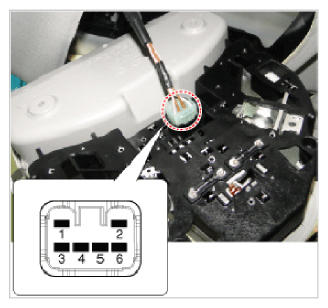

Fig 1: Identifying Map Lamp Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA

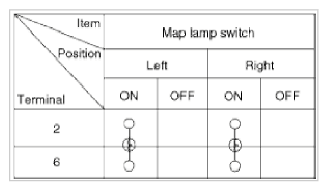

Fig 2: Map Lamp Switch Connector Continuity Chart
Courtesy of HYUNDAI MOTOR AMERICA

[General]

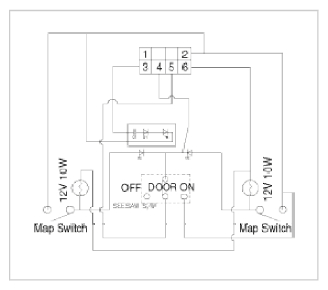

Fig 3: Map Lamp Switch - Circuit Diagram (General)
Courtesy of HYUNDAI MOTOR AMERICA

[Panorama Sunroof]

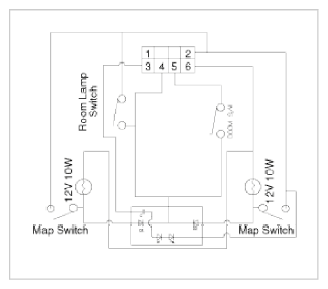

Fig 4: Map Lamp Switch - Circuit Diagram (Panorama Sunroof)
Courtesy of HYUNDAI MOTOR AMERICA
