WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

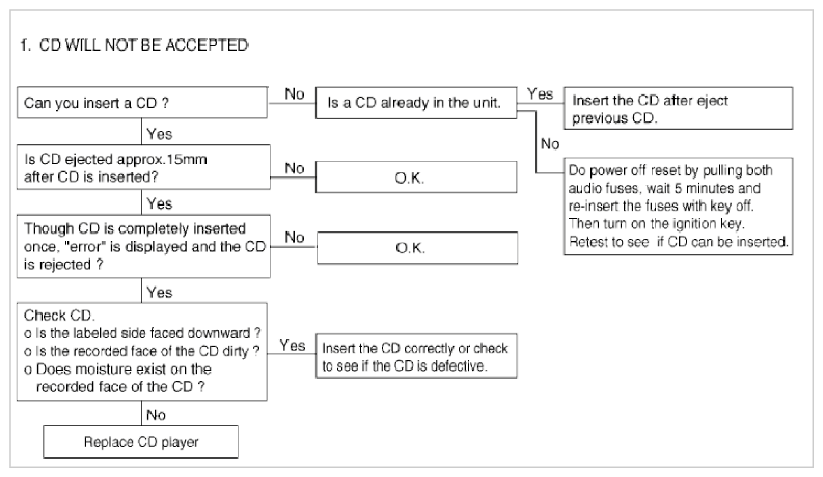

Fig 1: Audio System Troubleshooting Procedure Chart (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

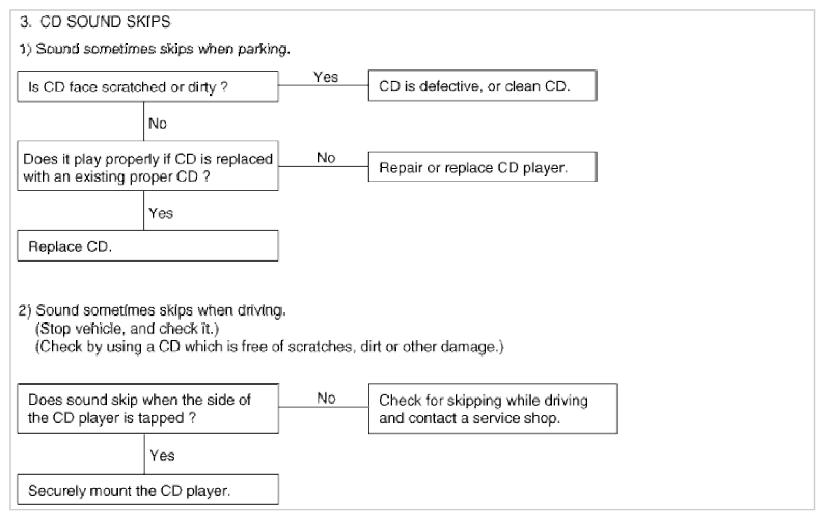

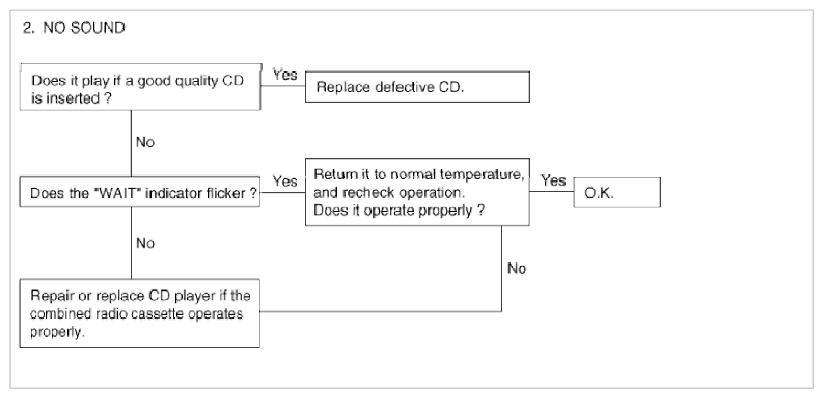

Fig 2: Audio System Troubleshooting Procedure Chart (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

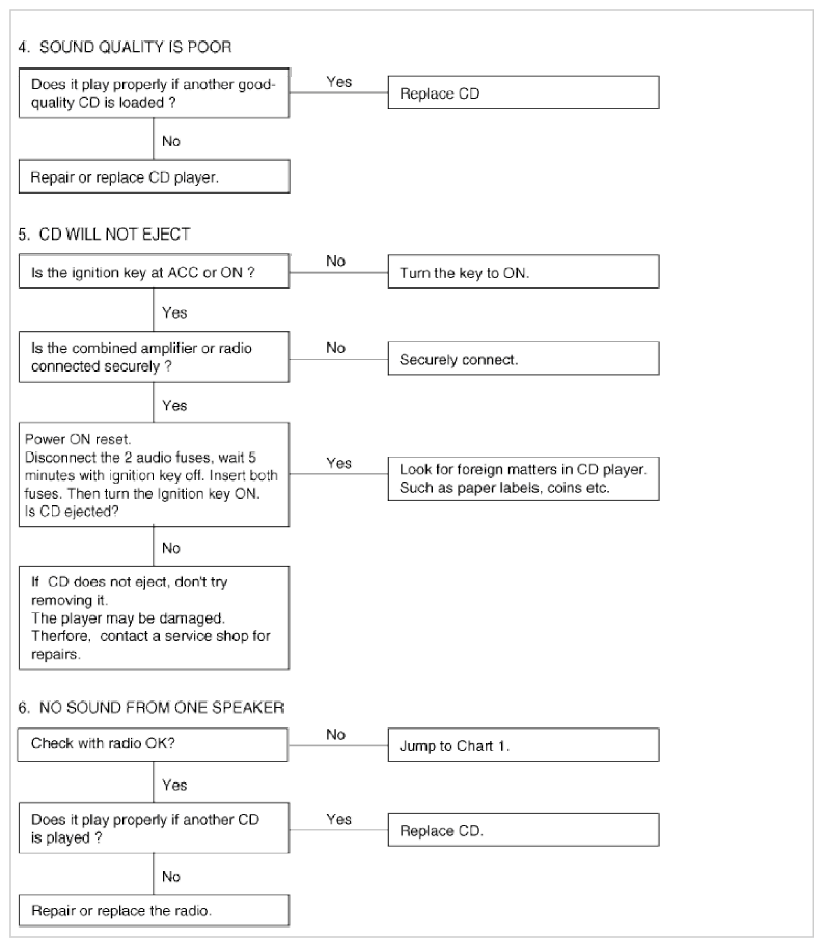

Fig 3: Audio System Troubleshooting Procedure Chart (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 4: Audio System Troubleshooting Procedure Chart (4 Of 4)
