Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the center air vent duct (A).

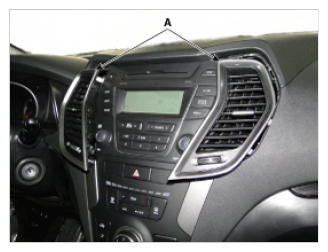

    Fig 1: Identifying Center Air Vent Duct
    G09365966Courtesy of HYUNDAI MOTOR AMERICA
  3. Separate the audio head unit (A) from crash pad after loosening the screws (4EA).

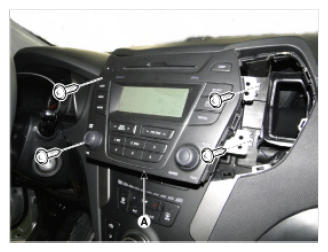

    Fig 2: Identifying Audio Head Unit And Screws
    G09365967Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the audio head unit (A) after disconnecting the connectors and cable.

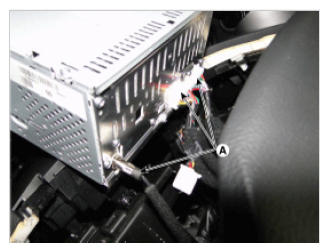

    Fig 3: Identifying Audio Head Unit
    G09365968Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: When the compact disc is not ejected, do not remove it forcibly.
