Circuit Diagram

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

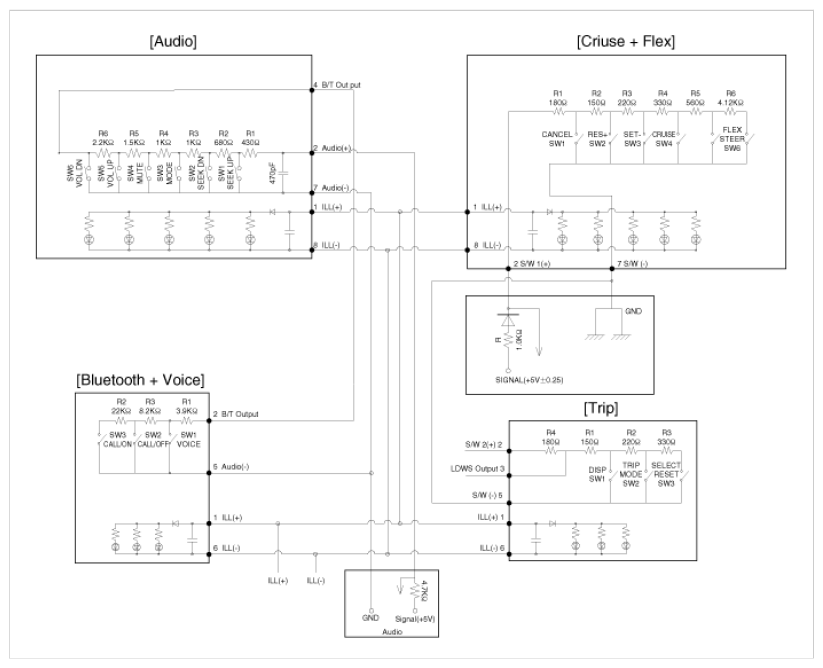

Fig 1: Audio - Circuit Diagram (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

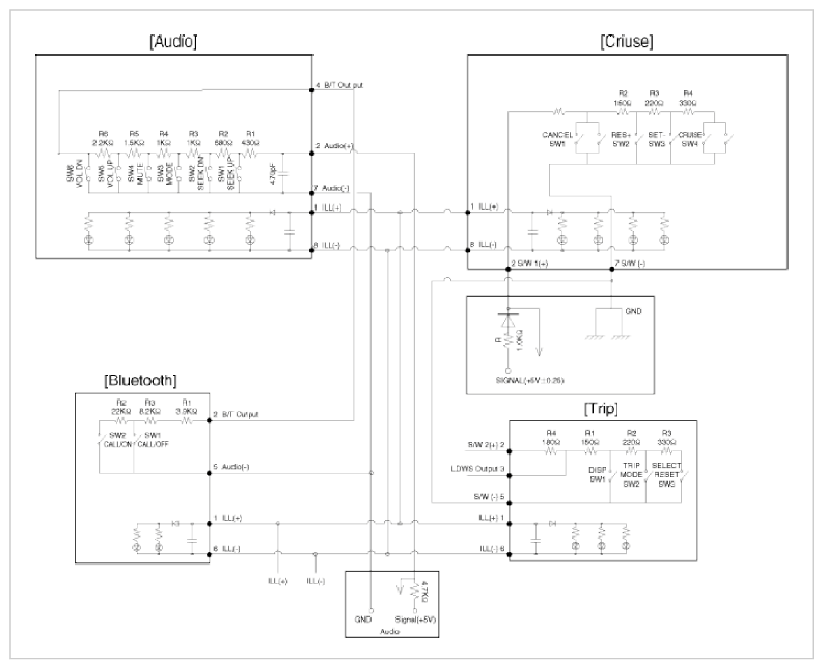

Fig 2: Audio - Circuit Diagram (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

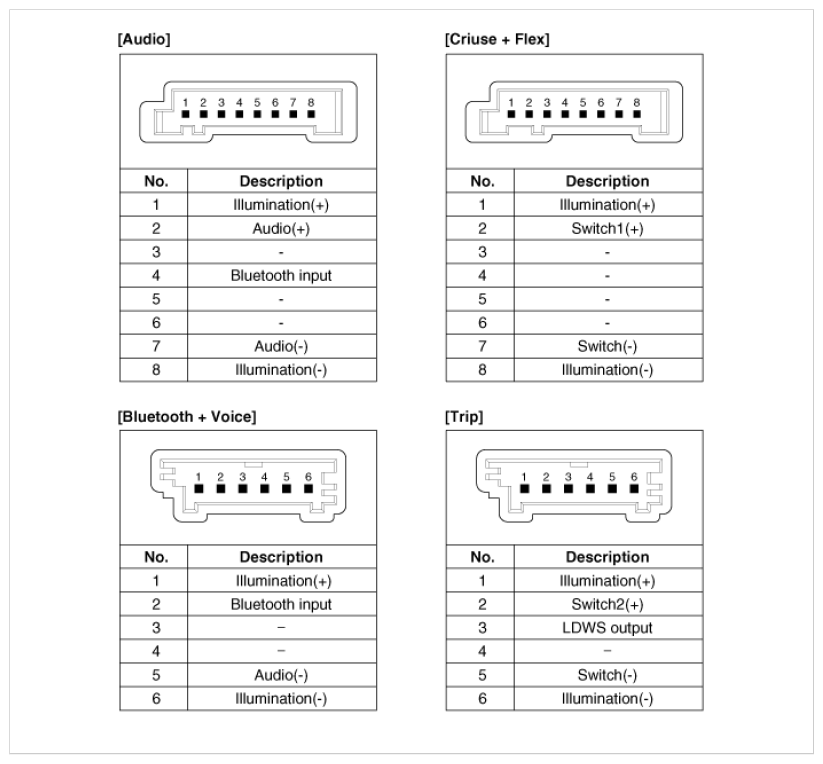

Fig 3: Identifying Audio Connector Terminals

Courtesy of HYUNDAI MOTOR AMERICA
