Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the passenger side crash pad under cover (A).

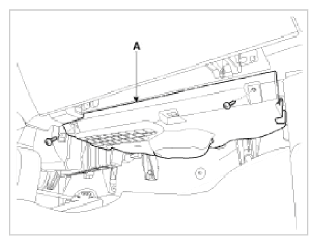

    Fig 1: Identifying Passenger Side Crash Pad Under Cover
    G09366695Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the evaporator temperature sensor connector (A).

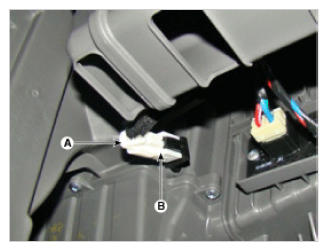

    Fig 2: Identifying Evaporator Temperature Sensor And Connector
    G09366696Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the evaporator temperature sensor (B) by pulling it out after rotating it 90° in a counterclockwise direction.
  5. Install in the reverse order of removal.
