Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the auto defogging sensor cover (A).

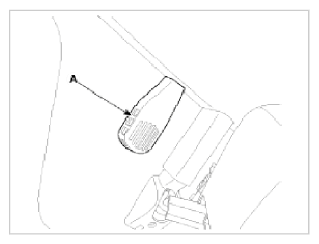

    Fig 1: Identifying Auto Defogging Sensor Cover
    G09366708Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the connector (A) and then remove the auto defogging sensor (B).

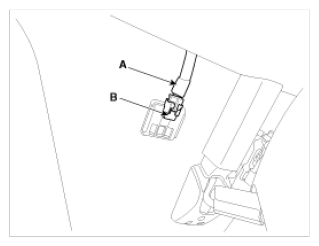

    Fig 2: Identifying Auto Defogging Sensor And Connector
    G09366709Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
