Repair procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF.
  2. Remove the front bumper.

    Refer to FRONT BUMPER COVER .

  3. Disconnect ambient temperature sensor.
  4. Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature.

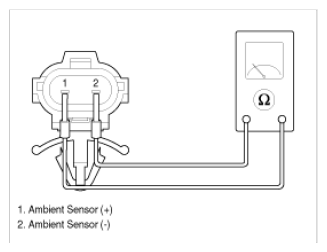

    Fig 1: Checking Resistance Of Ambient Temperature Sensor Between Terminals
    G09366705Courtesy of HYUNDAI MOTOR AMERICA
    TEMPERATURE, RESISTANCE AND VOLTAGE SPECIFICATIONS

    Ambient temperature [°C (°F)] Resistance between terminals 1 and 2 (kΩ)
    -10(14) 158.18
    0 (32) 95.10
    10 (50) 58.80
    20 (68) 37.32
  5. If the measured resistance is not within specification, substitute with a known-good ambient temperature sensor and check for proper operation.
  6. Replace the ambient temperature sensor if it is proved that there is a problem with the sensor.
