Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the console front complete assembly (A).
Refer to FLOOR CONSOLE ASSEMBLY .

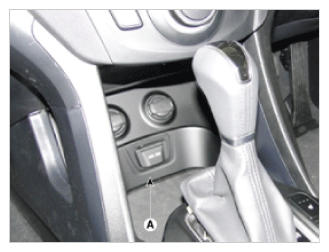

Fig 1: Identifying Floor Console Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove the multimedia jack (B) after disconnecting the connector (A) from the console front complete assembly.

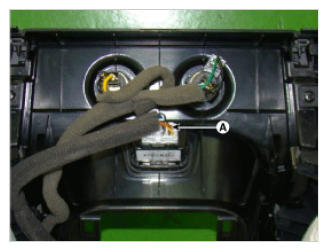

Fig 2: Identifying Multimedia Jack Connector
Courtesy of HYUNDAI MOTOR AMERICA

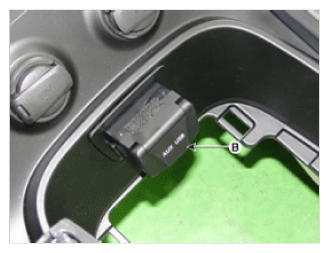

Fig 3: Identifying Multimedia Jack
Courtesy of HYUNDAI MOTOR AMERICA
