Repair Procedures: Reassembly

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the spring lower pad (D) so that the protrusions (A) fit in the holes (C) in the spring lower seat (B).

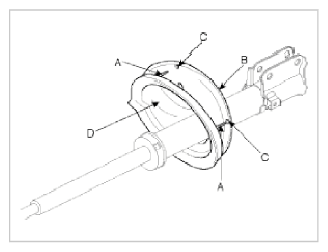

    Fig 1: Identifying Spring Lower Pad, Protrusions, Holes And Spring Lower Seat
    G09368000Courtesy of HYUNDAI MOTOR AMERICA
  2. Compress coil spring using special tool (09546-26000). Install compressed coil spring into shock absorber.
    NOTE:
    1. Indicated identification color marks on the coil spring. Pay attention to identification mark and then install them.
    2. Install the coil spring with the identification mark directed toward the knuckle.

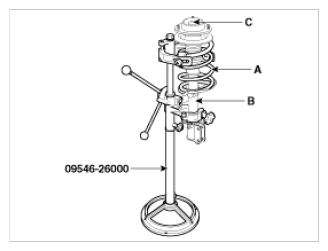

    Fig 2: Compressing Coil Spring Using Special Tool
    G09368001Courtesy of HYUNDAI MOTOR AMERICA
  3. After fully extending the piston rod, install the spring upper seat and insulator assembly.
  4. After seating the upper and lower ends of the coil spring (A) in the upper and lower spring seat grooves (B) correctly, tighten new self-locking nut temporarily.

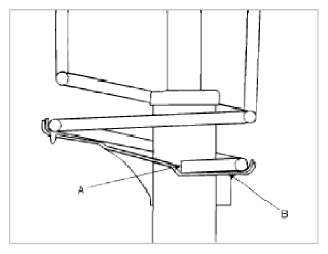

    Fig 3: Identifying Coil Spring Upper And Lower Ends And Spring Seat Grooves
    G09368002Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the special tool (09546-26000).
  6. Tighten the self-locking nut to the specified torque.

    Tightening torque:

    58.8 ~ 68.6 N.m (6.0 ~ 7.0 kgf.m, 43.4 ~ 50.6 lb-ft)
