Repair Procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the strut insulator for wear or damage.
  2. Check rubber parts for damage or deterioration.
  3. Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.

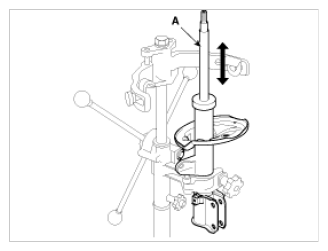

    Fig 1: Checking Piston Rod Operation
    G09367998Courtesy of HYUNDAI MOTOR AMERICA
