Repair Procedures: Disposal

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully extend the piston rod.
  2. Drill a hole on the A section to remove gas from the cylinder.

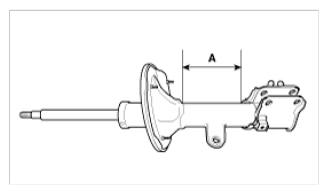

    Fig 1: Identifying Drill Hole Area
    G09367999Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: The gas coming out is harmless, but be careful of chips that may fly when drilling.

    Be sure to wear safety goggles or eye protection when performing this task.
