Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dust cover (A).

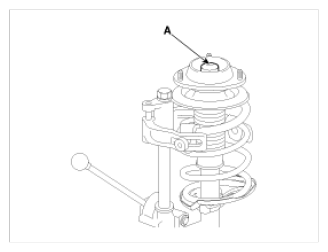

    Fig 1: Removing Dust Cover
    G09367996Courtesy of HYUNDAI MOTOR AMERICA
  2. Using the special tool (09546-26000), compress the coil spring (A).
  3. Remove the self-locking nut (C) from the strut assembly (B).

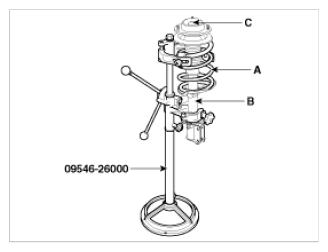

    Fig 2: Compressing Coil Spring Using Special Tool
    G09367997Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the insulator, spring seat, coil spring and dust cover from the strut assembly.
