Front Wheel Alignment: Toe

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

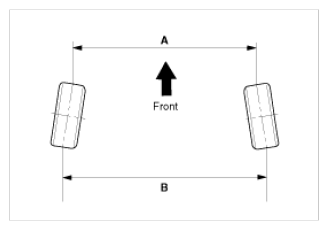

Fig 1: Identifying Toe In And Tow Out
G09367981Courtesy of HYUNDAI MOTOR AMERICA

B - A > 0: Toe in (+)

B - A < 0: Toe out (-)
