Front Wheel Alignment: Caster

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Caster angle:  4.14° ± 0.5°

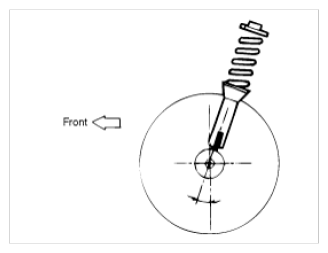

Fig 1: Identifying Caster Angle
G09367984Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • The worn loose or damaged parts of the front suspension assembly must be replaced prior to measuring front wheel alignment.
  • Camber and caster are pre-set to the specified value at the factory and don't need to be adjusted.
  • If the camber and caster are not within specifications, replace bent or damaged parts.
