Front Wheel Alignment: Camber
WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

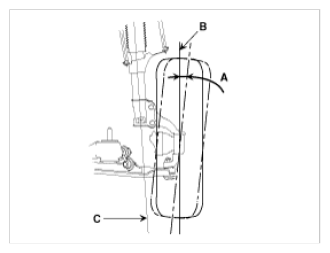

| Item | Description |
|---|---|
| A | Positive camber angle |
| B | True vertical |
| C | Strut centerline |
When the wheel tilts out at the top, then the camber is positive (+).
When the wheel tilts in at the top, then the camber is negative (-).
The steering knuckle which is installed with the strut assembly is pre-set to the specified camber at the factory and doesn't need to be adjusted.
If the camber in not within specification, inspect for damaged components and replace as needed.
Camber angle: -0.5° ± 0.5°
