Repair procedures: Removal

  1. Remove valve core and deflate the tire.
  2. Remove the side of the tire bead area from the wheel using tire changing machine.

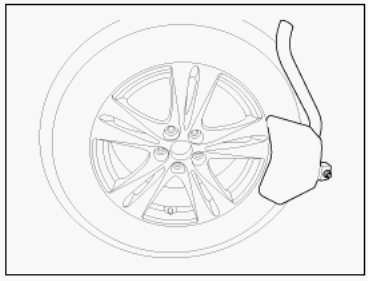

    Fig 1: Removing Side Of Tire Bead Area From Wheel
    G08805409Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
    • Avoid tire/tool contact with the valve on dismount.
    • Dismount should end near the valve.
  3. Rotate the wheel clockwise.

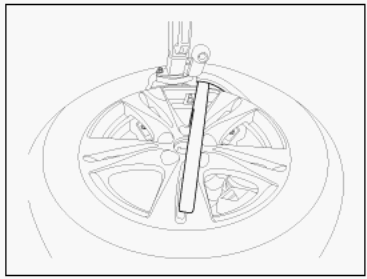

    Fig 2: Breaking Tire Bead (1 Of 2)
    G08805410Courtesy of HYUNDAI MOTOR AMERICA

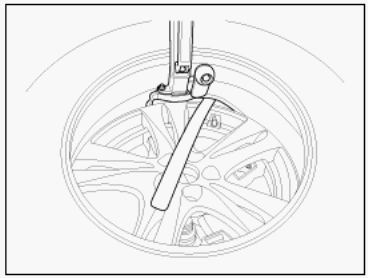

    Fig 3: Breaking Tire Bead (2 Of 2)
    G08805411Courtesy of HYUNDAI MOTOR AMERICA
