General Safety Information and Caution: Precautions: Disconnecting

To release the lock, pull the spring-loaded sleeve (A) and the slider (B), while holding the opposite half of the connector.

Pull the connector halves apart. Be sure to pull on the sleeve and not on the connector half.

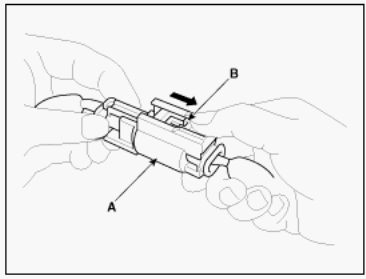

Fig 1: Disconnecting Spring-Loaded Lock Air Bag Connector
G08805529Courtesy of HYUNDAI MOTOR AMERICA
