Repair procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to "CONSOLE .

  4. Remove the rear heating joint duct (A).

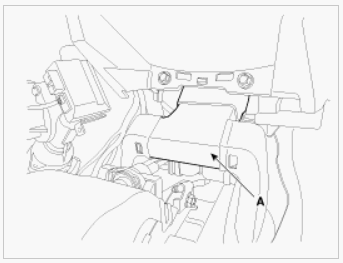

    Fig 1: Identifying Rear Heating Joint Duct
    G08805545Courtesy of HYUNDAI MOTOR AMERICA
  5. Pull up the lock, of the SRSCM connector, the disconnect the connector (A and B).

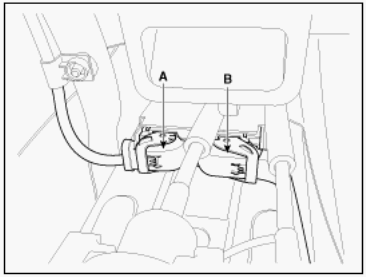

    Fig 2: Identifying SRSCM Connectors
    G08805546Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the SRSCM mounting nuts (3EA) from the SRSCM, then remove the SRSCM.
