Component Inspection

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Actuator Test Check
1. Connect GDS to Data Link Connector (DLC)
2. IG key "ON"
3. Perform Actuator Test with GDS.

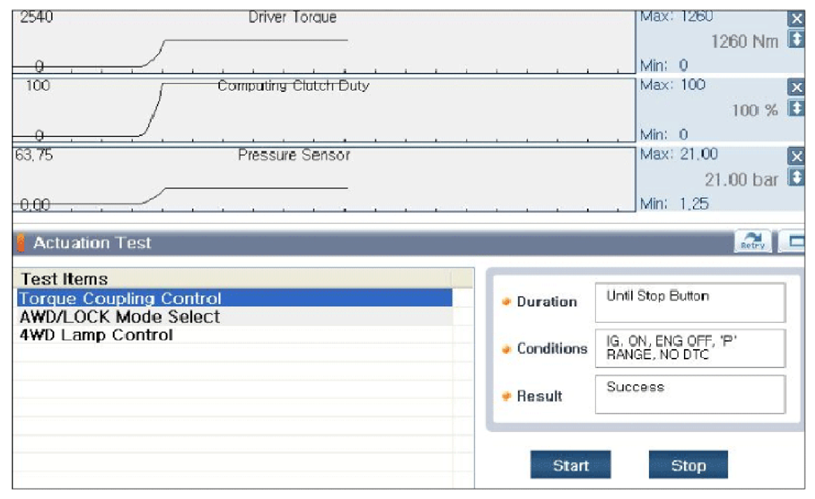

  Fig 1: Display - Actuator Test Screen
  Courtesy of HYUNDAI MOTOR AMERICA
4. Are any DTCs present?
  YES
  - Substitute with a known-good "Coupling" and check for proper operation. If the problem is corrected, replace "Coupling" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
