Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver crash pad lower panel.

    Refer to CRASH PAD LOWER PANEL .

  3. Remove the knee airbag module.

    Refer to KNEE AIRBAG (KAB) MODULE .

  4. Disconnect the connector of the immobilizer unit and then remove the immobilizer bolt (A) after loosening a nut.

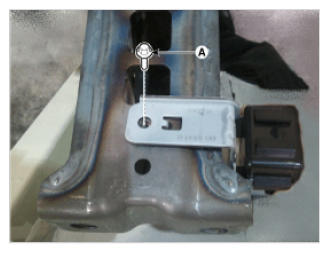

Fig 1: Identifying Immobilizer Mounting Bolt
G09366603Courtesy of HYUNDAI MOTOR AMERICA
