Interior 3 Antenna

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the luggage covering mat (A).

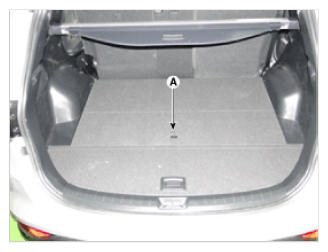

    Fig 1: Identifying Luggage Covering Mat
    G09366097Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the luggage floor box (A) after loosening the screws (4EA).

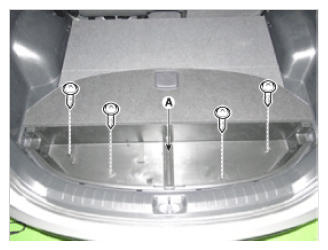

    Fig 2: Identifying Luggage Floor Box Screws
    G09366098Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the luggage tray box (A).

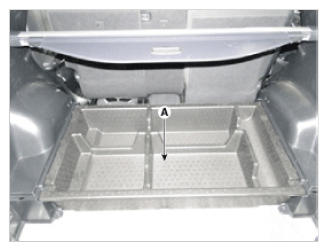

    Fig 3: Identifying Luggage Tray Box
    G09366099Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the floor mat (A) after loosening the screws (4EA).

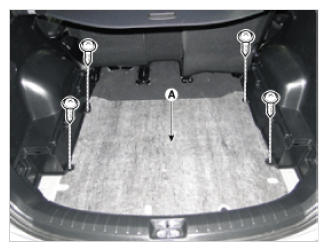

    Fig 4: Identifying Floor Mat And Screws
    G09366100Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the interior 3 antenna (B) after loosening the mounting screws (2EA) and disconnecting the connector(A).

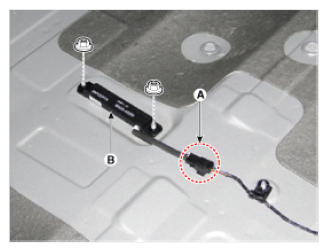

    Fig 5: Identifying Interior 3 Antenna, Connector And Mounting Nuts
    G09366101Courtesy of HYUNDAI MOTOR AMERICA
